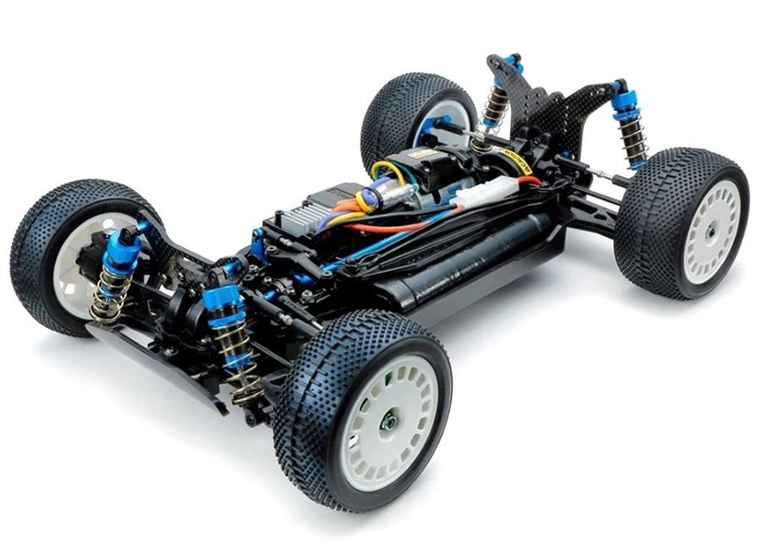

Tamiya RC TT02-02BR Chassis Kit

The Tamiya TT02-02BR Chassis Kit from our great range of radio controlled cars, is an upgraded version of the TT-02B chassis kit with a wealth of parts, plus new aluminum propller joints and carbon fiber damper stays to ensure range of setup adjustments.

Features

• This is a 1/10 scale R/C chassis assembly kit.
• Drivetrain uses Item 22049 to adjust the effectiveness of gear differential by using different oil viscosities. *Diff. joint cups are designed for this chassis kit for improved durability.
• New front and rear damper stays give more set up options of oil dampers and upper arms.
• Using front and rear universal drive shafts ensures stable drivetrain regardless of suspension stroke.
• Propeller shafts have plastic parts at joint sections of aluminum joint cups and shafts to limit wear of joint cups.
• Includes two rear wings - Neo Scorcher kit-standard one (transparent) and Item 54211 (TRF201 Rear Wing Set). Change wing stay when using Item 54211.
• Item 54211 includes two wide design wings to adjust downforce depending on running surface condition, and wing stay spacers are also included to adjust rear wing angle.
• 4~6mm longer turnbuckle shafts help prevent plastic adjuster sections from deforming to ensure improved suspension movement.
• Steering linkage with flange pipes feature improved durability by attachment using hex head screws and lock nuts compared to attachment using 3x18 step screws.
• Features full ball bearings.
• Comes with a carrying case dedicated for the TT-02BR chassis.

Hop-up Parts Included:

• 22049 XV-02/TT-02 Oil Gear Differential Unit
• 54501 TT-02 Aluminum Propeller Shaft
• 54768 06 Module Hard Coated Aluminum Pinion Gear (17T)
• 54993 TT-02B/DF-03 Aluminum Damper Set
• 53793 DF-02 Two-Way Aluminum Rear Uprights
• 54539 TT-02B Full Turnbuckle Set
• 53791 DF-02 Assembly Universal Shaft
• 53880 Large Dish Wheels (4WD/Front, 62/25)
• 53881 Large Dish Wheels (Rear, 62/35)
• 54211 TRF201 Rear Wing Set
• 54815 TT-02B Reinforced Gear Covers & Lower Suspension Arms (2pcs.)
• 54926 TT-02 Lower Deck (Hard/Black)

Wide Variety of Option Parts are separately available.

We have packaged the radio control system, battery and charger together for an easy additional purchase.

• Starter Package Deal (Includes Slow Charger)
• Racing Package Deal (Includes Fast Charger)

ELECTRIC KITS REQUIRE:

• Radio: 2-Channel with servo(s)
• Electronic Speed Controller
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: Tamiya PS spray paints

Manufacturer: Tamiya
Model: 58717 R/C TT02-02BR Chassis Kit
Scale: 1/10
